Ultra Drain UDP75 1x Piece Pack
Ultra Drain UDP75 1x Piece Pack
Couldn't load pickup availability
UDP 75 1-piece pack. Narrow, deep channel for patios, paths, courtyards and garage entries.
Drain length: 2 m total (1 x 2 m)
Price per lineal metre: $287.16 incl. GST
Included in each pack:
- 1 x 2 m drain base
- 1 x 2 m alloy top grating
- 1 x 2 m construction cover
- 1 x joiner
- 1 x end cap
- 1 x end outlet

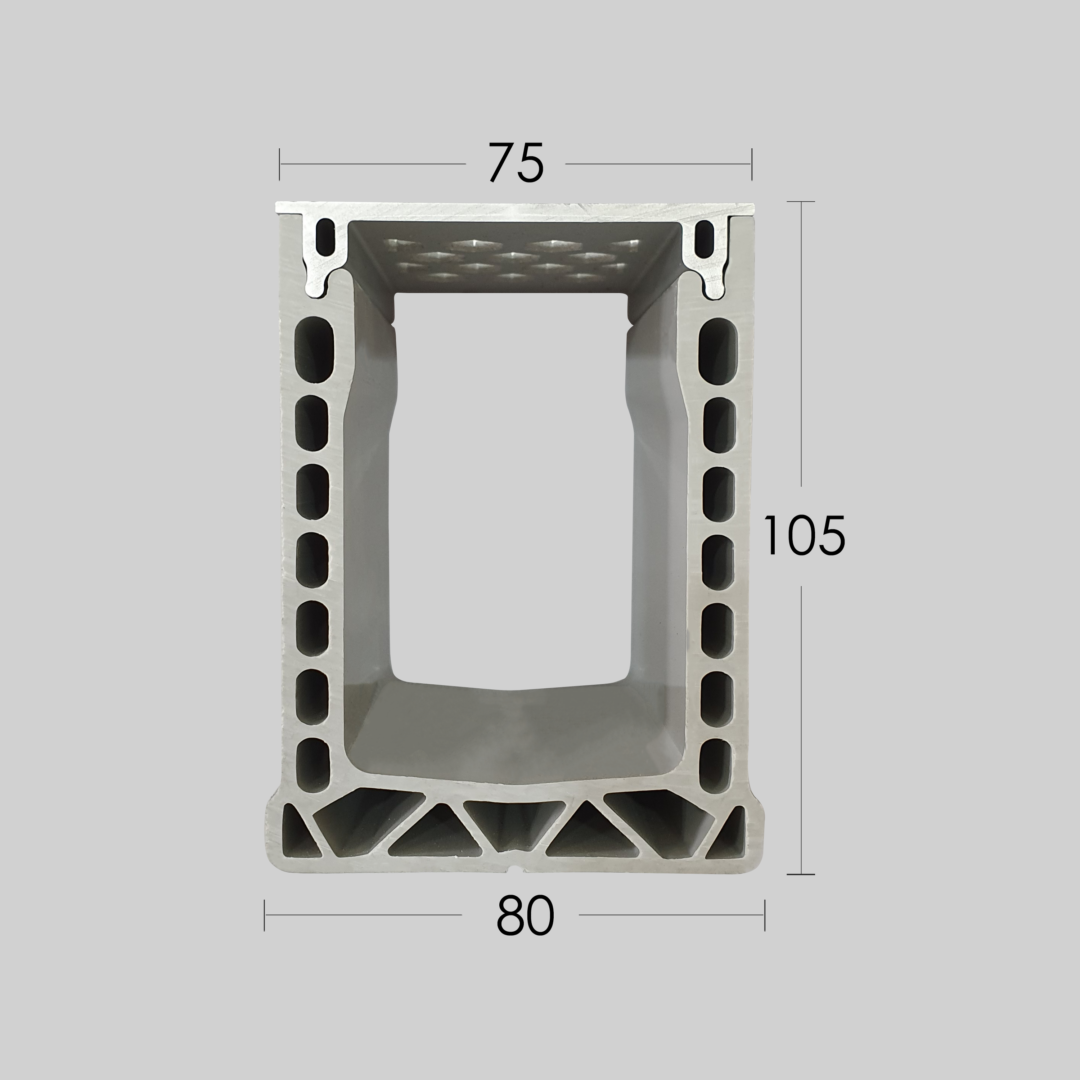

Specifications: 400 L/min water flow · 75 mm internal width · 80 mm overall width · 105 mm height · in-built fall to prevent pooling · rated to 1,000 kg per tyre at up to 25 km/h when encased in concrete (not for vehicles over 5 tonnes).
Marine-grade anodised alloy top: horizontal as standard, honeycomb on request. Virgin PVC base with a high level of UV inhibitor, 100% recyclable. Join with PVC solvent cement. Designed in New Zealand.
Free delivery NZ-wide. Not sure it is the right size? Request a free sample or call 09 415 4588.
Shipping & Returns
Shipping & Returns
Free Shipping On All Orders Nationwide.
- Free delivery NZ-wide
- Free samples before you buy
- Cost-effective alternative to stainless
- Expert help 09 415 4588
How much do I need?
Enter your drain run and we'll work out the packs and fittings.
Each pack already includes its joiners, end cap and end outlet. Only add extra outlets or corners if your layout needs them.
What's in the pack
- 1 x 2 m drain base
- 1 x 2 m alloy top grating
- 1 x 2 m construction cover
- 1 x joiner
- 1 x end cap
- 1 x end outlet
Covers 2 lineal metres. Join extra lengths with PVC solvent cement.
Specifications
| Water flow | 400 L/min |
|---|---|
| Internal width | 75 mm |
| Overall width | 80 mm |
| Height | 105 mm |
| Channel length | 2 m |
| Discharge | Open end, in-built fall |
| Vehicle rating | 1,000 kg per tyre, max 25 km/h* |
| Grate top | Marine-grade anodised alloy, horizontal or honeycomb |
*When fully encased in concrete as per the installation guide. Not for heavy vehicles over 5 tonnes.
Not sure it's the right one?
Get a free sample posted to you, compare all five profiles, or talk to us.
Trade or bulk order? Ask about trade pricing
Complete your installation
Packs include joiners, end caps and an outlet. Add corners and extra outlets for your UDP 75 layout.
Free samples
Not sure yet? Get a free sample
We'll post a sample of this profile to you for free, so you can check the look and fit before you buy.
- See and feel the marine-grade alloy top
- Check the profile fits your screed depth
- Posted free to your door, NZ-wide
