New · Ultra Drain Plus

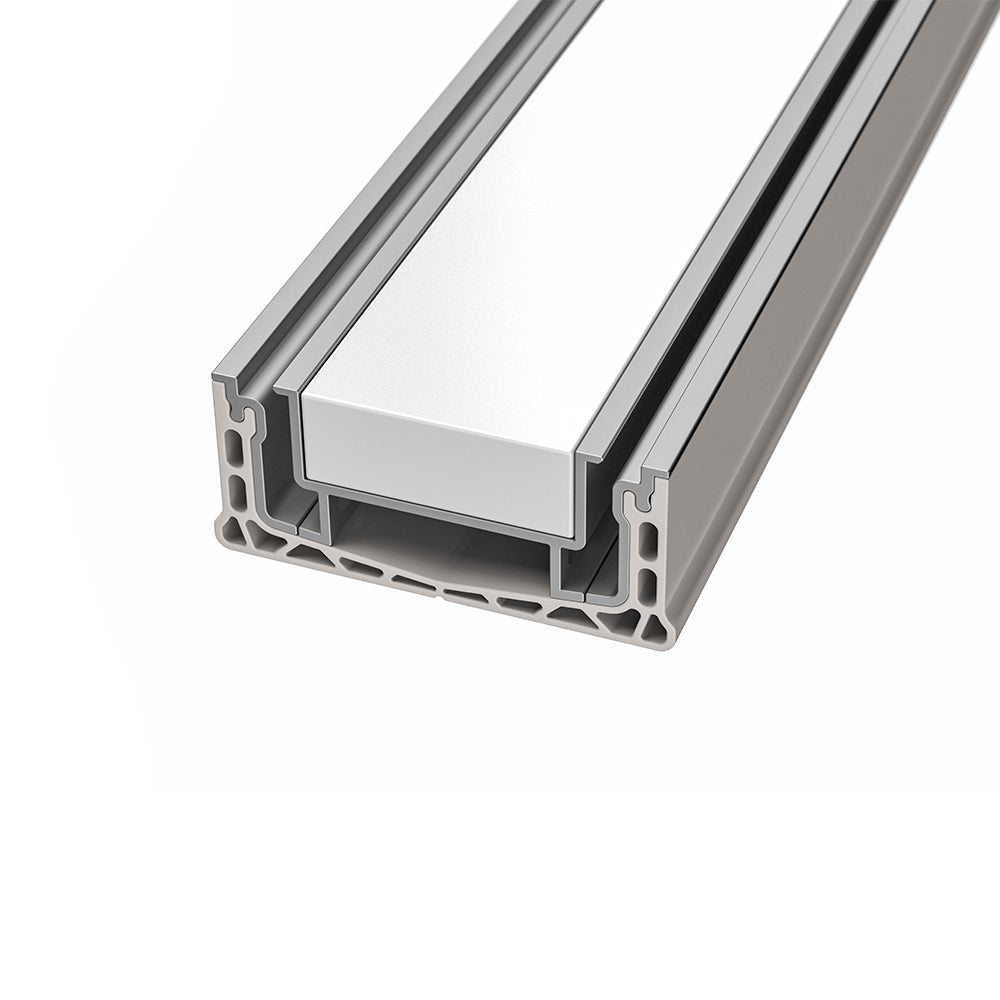

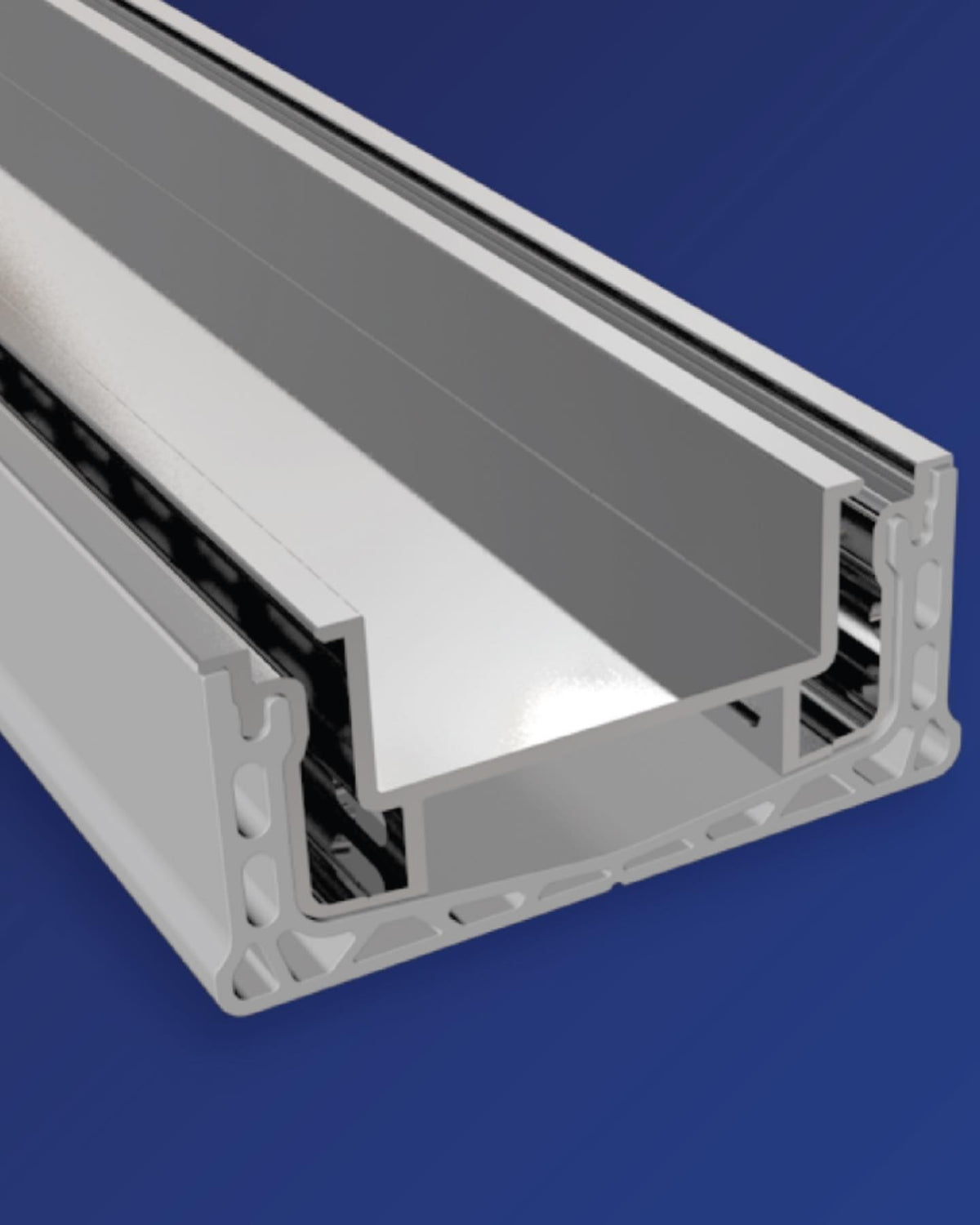

UDP 45 Tile Insert

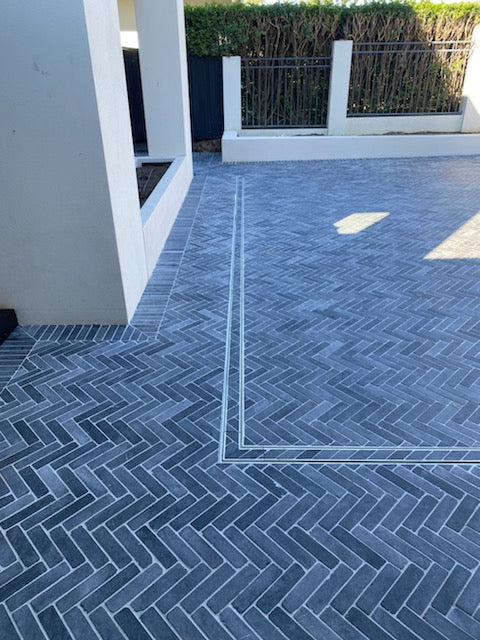

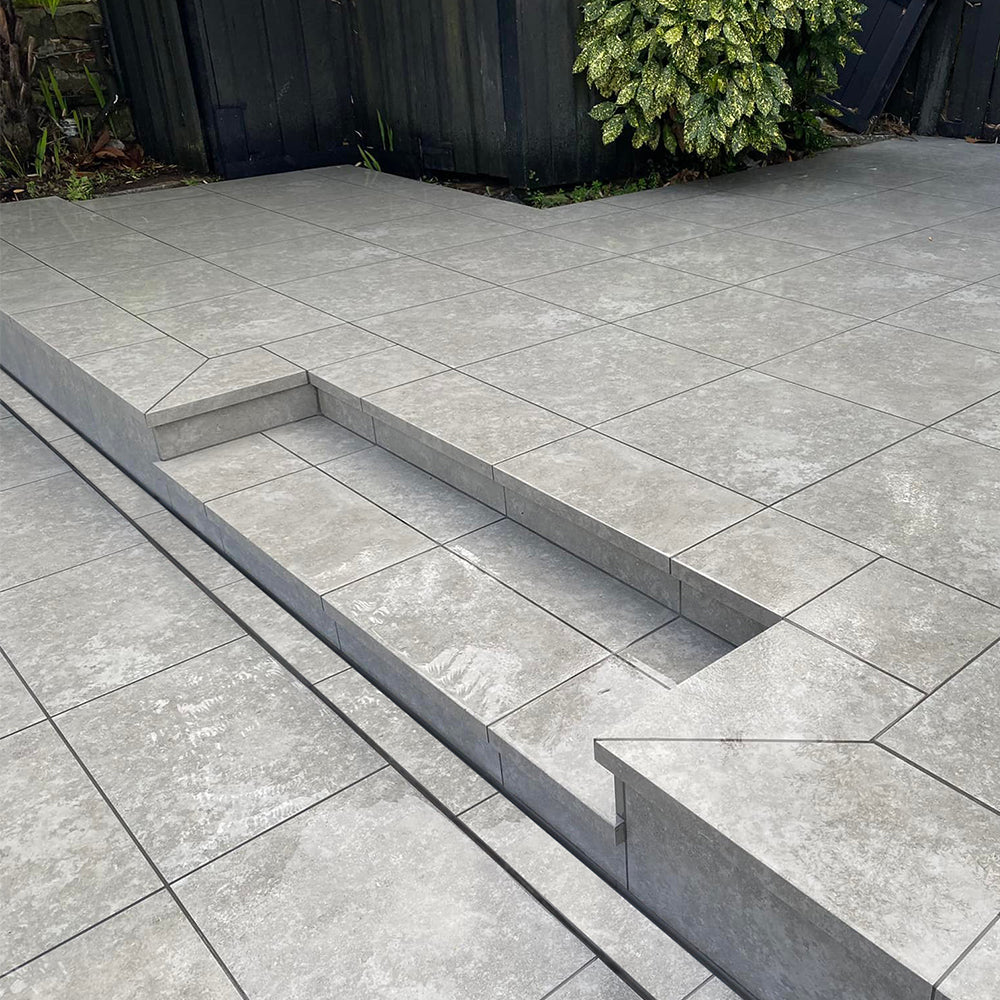

A hidden channel drain. Set tile, paver or stone up to 20 mm into the alloy tray for a near-invisible finish around pools, decks and outdoor living.
| Water flow | 150 L/min |
|---|---|
| Internal width | 101 mm |
| Overall width | 106 mm |
| Height | 45 mm |
| Channel length | 2 m |
| Discharge | Open end, in-built fall |
| Vehicle rating | 1,000 kg per tyre, max 25 km/h* |
| Grate top | Alloy tile tray (takes up to 20 mm) |
*When fully encased in concrete as per the installation guide. Not for heavy vehicles over 5 tonnes.
Accessories
- SpigotVariable-positioning drain outlet
- End capCloses off the end of the channel
- Right angle cornerFor 90° channel connections
Size guide
Compare the range
| Spec | UDP 45 Tile Insert | UDP 45 | UDP 75 | UDP 100 | UDP 130 |
|---|---|---|---|---|---|
| Water flow | 150 L/min | 300 L/min | 400 L/min | 570 L/min | 700 L/min |
| Internal width | 101 mm | 101 mm | 75 mm | 120 mm | 130 mm |
| Overall width | 106 mm | 106 mm | 80 mm | 120 mm | 160 mm |
| Height | 45 mm | 45 mm | 105 mm | 102.5 mm | 115 mm |
| Vehicle rating | 1,000 kg per tyre | 1,000 kg per tyre | 1,000 kg per tyre | 1,000 kg per tyre | 1,000 kg per tyre |
| Lengths | 2 m | 2 m | 2 m | 2 m | 2 m |
Vehicle rating applies when the channel is fully encased in concrete as per the installation guide, at a maximum of 25 km/h. Not intended for heavy vehicles over 5 tonnes. All channels come in 2 m lengths. Not sure which size suits your site? Call 09 415 4588.
Trade pricing
Trade pricing available
Builders, landscapers, pool builders and plumbers: enquire direct for trade pricing on the full range.
Free samples
Try before you buy
Not sure which profile suits your project? Tell us where to send it and we'll post you a free sample.
- See and feel the marine-grade alloy top
- Check the profile fits your screed depth
- Posted free to your door, NZ-wide
Free NZ delivery · Free samples
Talk to a drainage expert
Tell us about your project and we'll help you pick the right channel, outlets and accessories.
