The cost-effective alternative to stainless
Built to perform. Made to last.
Durable
Corrosion-resistant, marine-grade anodised aluminium alloy top
Efficient
High flow capacity with an in-built fall to stop pooling
Modular
Interlocking system for seamless, glued joins
New Zealand
New Zealand owned & designed
100% Recyclable
Sustainable and environmentally friendly
Five profiles, one system
Every profile shares the same marine-grade alloy top, in-built fall and interlocking joins. Pick the one that matches your flow and depth.

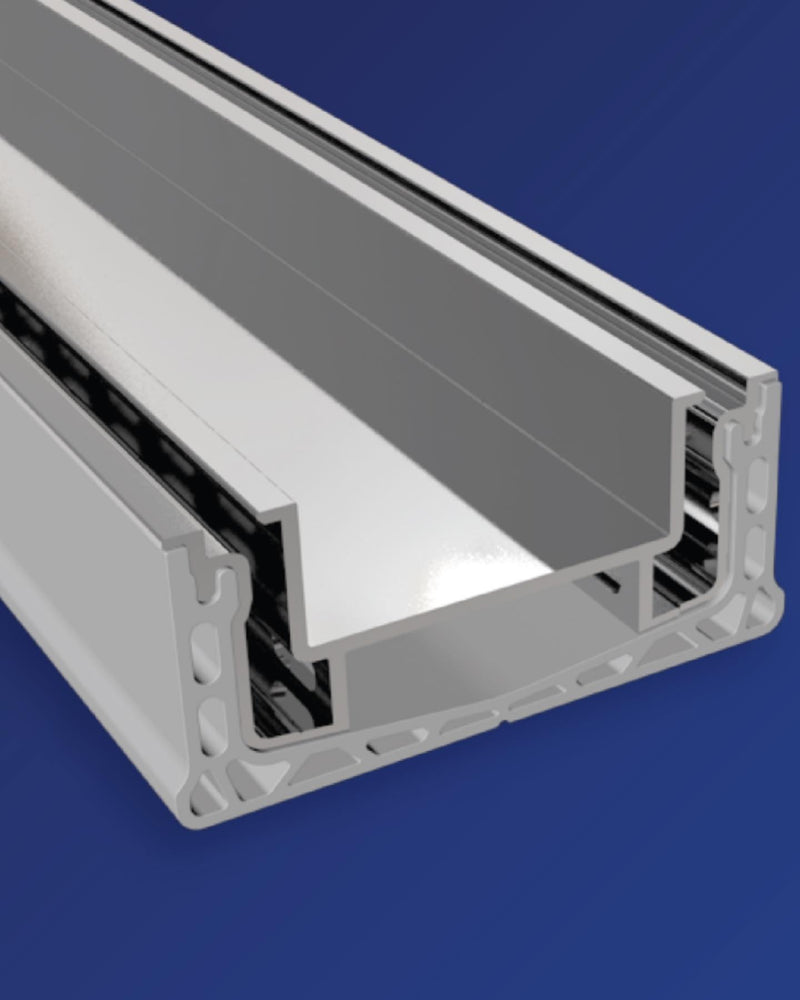

A hidden channel drain. Set tile, paver or stone into the 22 mm tray for a near-invisible finish.
| Water flow | 150 L/min |
|---|---|
| Internal width | 101 mm |
| Overall width | 106 mm |
| Height | 45 mm |
| Vehicle rating | 1,000 kg per tyre |

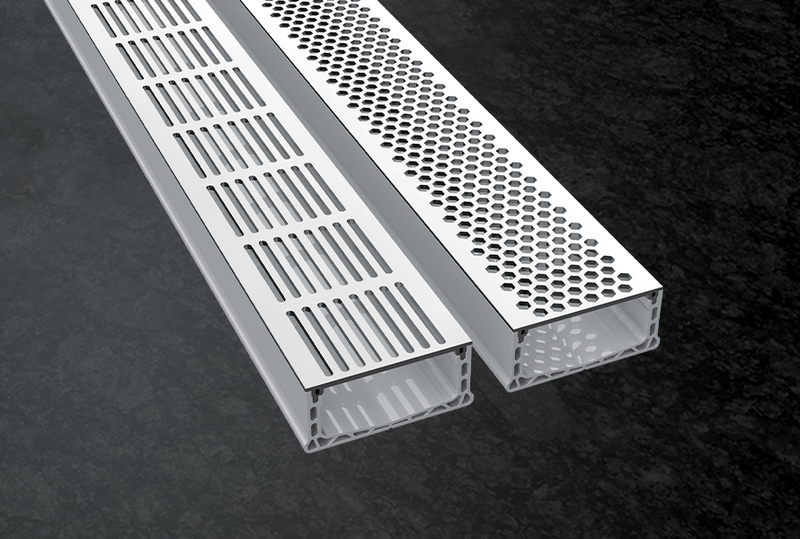

Low-profile channel for shallow screeds, balconies, decks and level thresholds.
| Water flow | 300 L/min |
|---|---|
| Internal width | 101 mm |
| Overall width | 106 mm |
| Height | 45 mm |
| Vehicle rating | 1,000 kg per tyre |

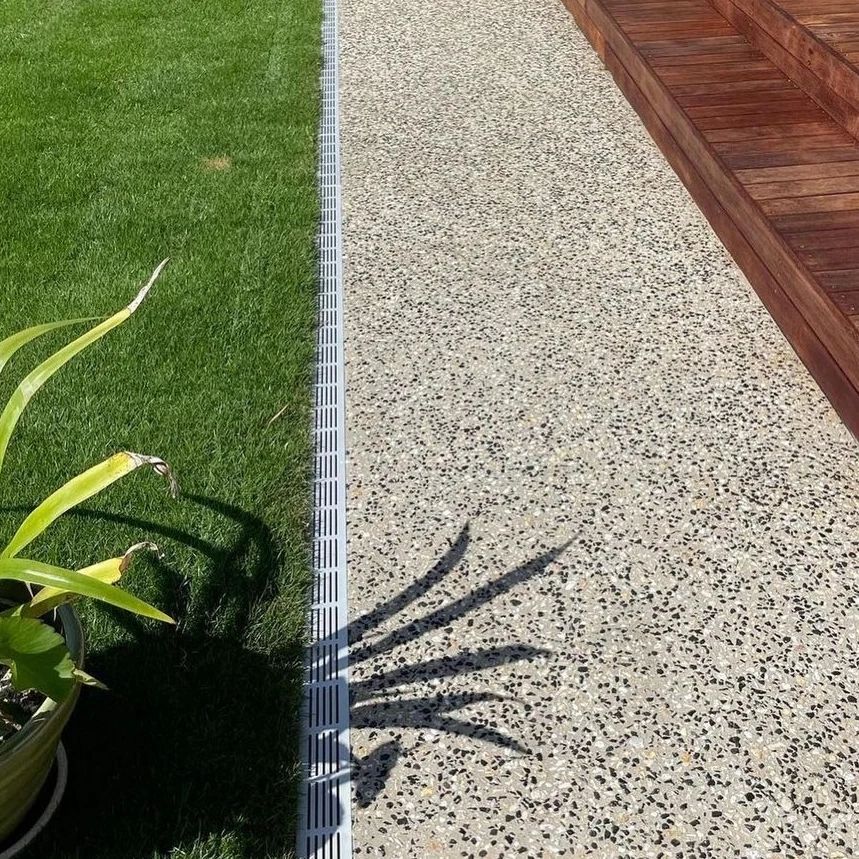

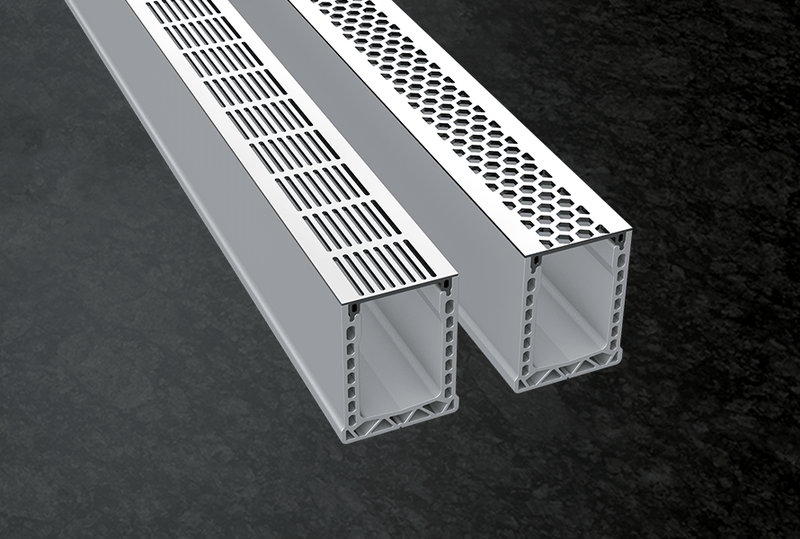

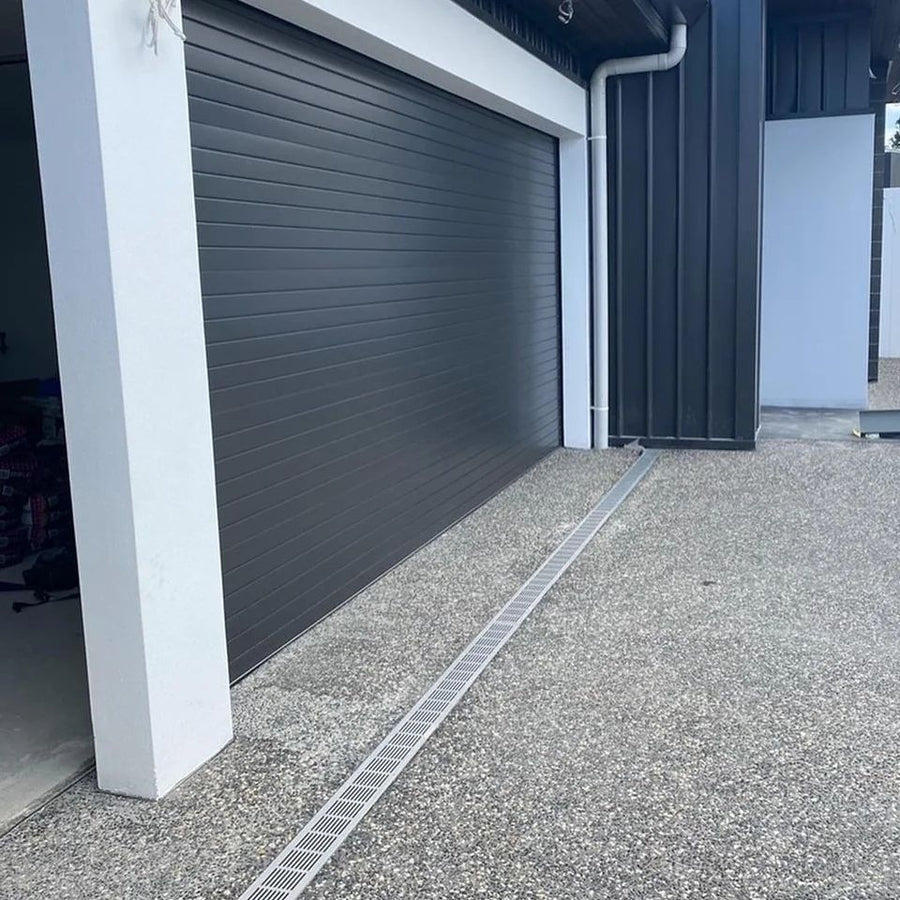

Narrow, deep channel for patios, paths, courtyards and garage entries.
| Water flow | 400 L/min |
|---|---|
| Internal width | 75 mm |
| Overall width | 80 mm |
| Height | 105 mm |
| Vehicle rating | 1,000 kg per tyre |

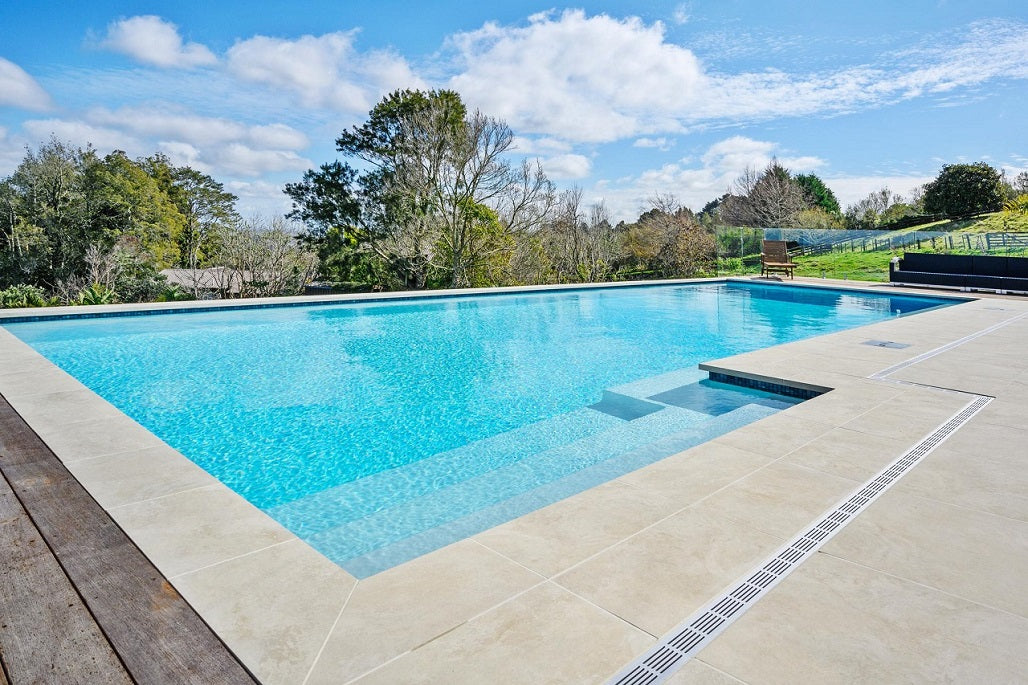

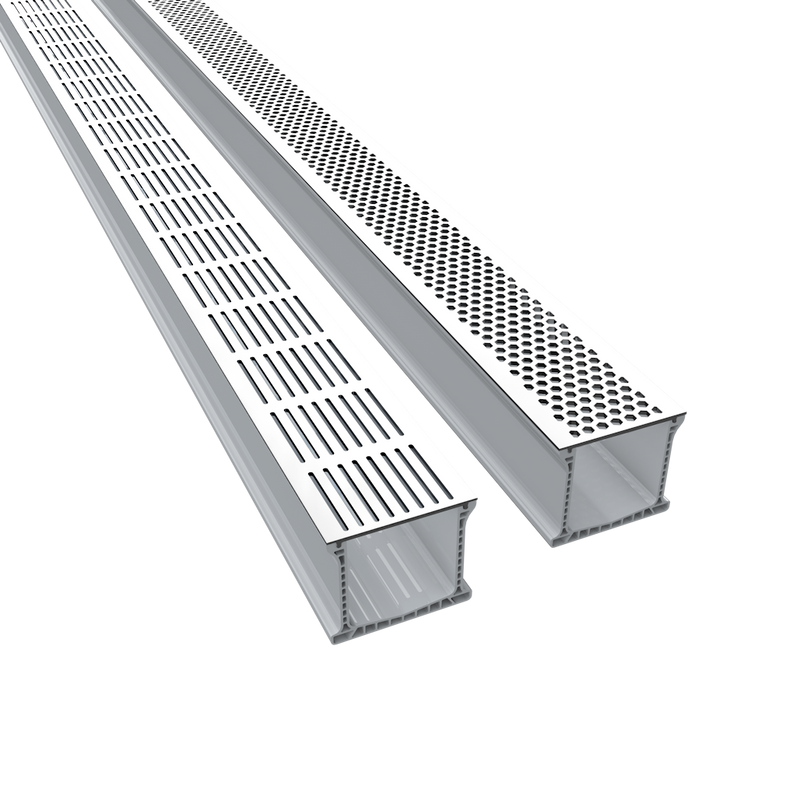

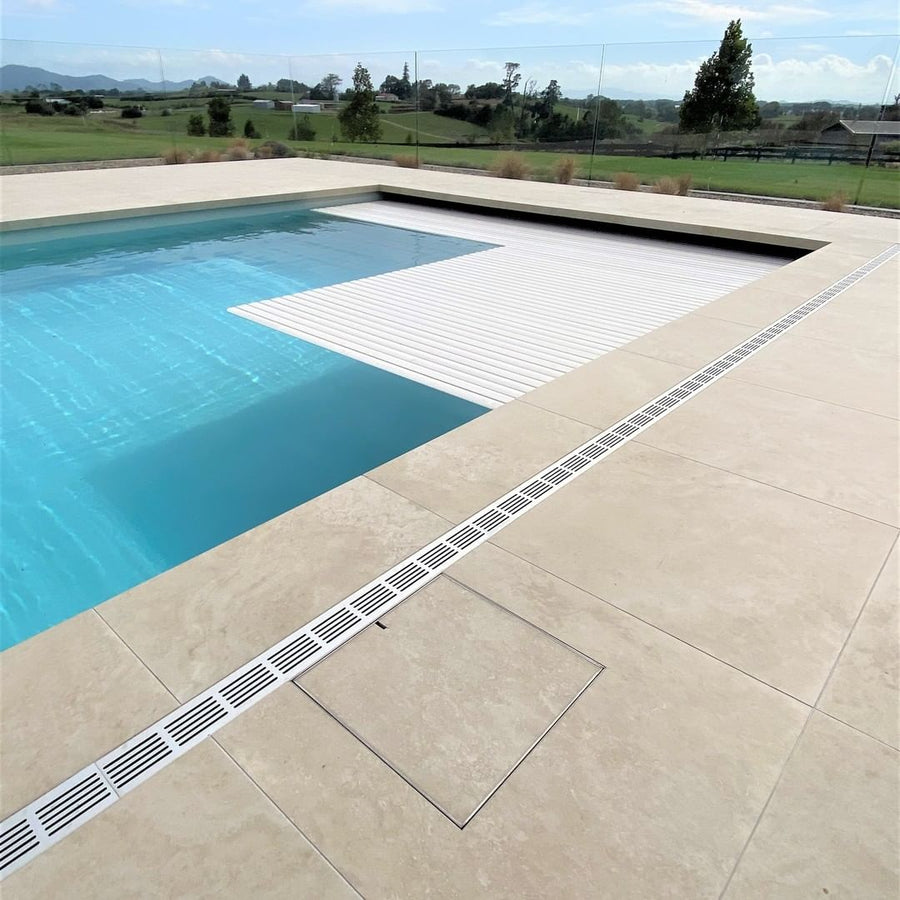

High-capacity channel for driveways, pool surrounds and large outdoor areas.
| Water flow | 570 L/min |
|---|---|
| Internal width | 120 mm |
| Overall width | 120 mm |
| Height | 102.5 mm |
| Vehicle rating | 1,000 kg per tyre |

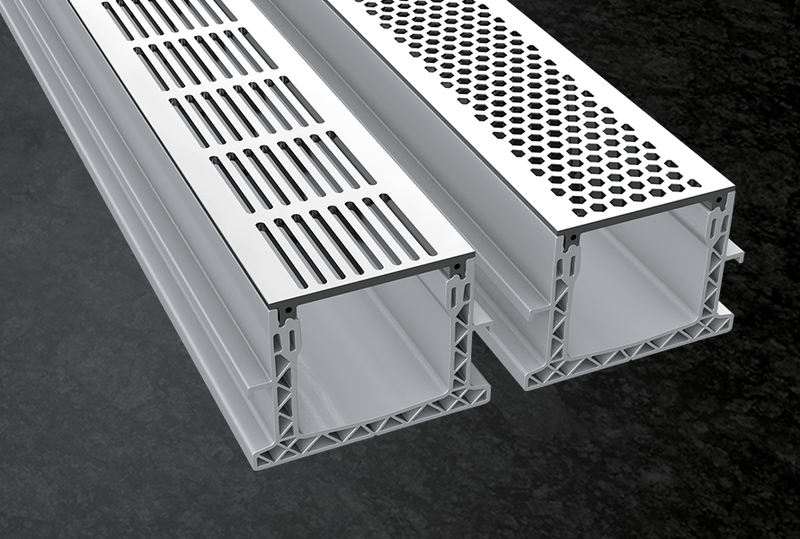

Our largest channel, with a wall-locking arm that keeps the walls rigid on commercial projects.
| Water flow | 700 L/min |
|---|---|
| Internal width | 130 mm |
| Overall width | 160 mm |
| Height | 115 mm |
| Vehicle rating | 1,000 kg per tyre |
Size guide
Choose by the area and rainfall you need to drain. Higher flow suits larger catchments such as driveways and pool surrounds.
| Spec | UDP 45 Tile Insert | UDP 45 | UDP 75 | UDP 100 | UDP 130 |
|---|---|---|---|---|---|
| Water flow | 150 L/min | 300 L/min | 400 L/min | 570 L/min | 700 L/min |
| Internal width | 101 mm | 101 mm | 75 mm | 120 mm | 130 mm |
| Overall width | 106 mm | 106 mm | 80 mm | 120 mm | 160 mm |
| Height | 45 mm | 45 mm | 105 mm | 102.5 mm | 115 mm |
| Vehicle rating | 1,000 kg per tyre | 1,000 kg per tyre | 1,000 kg per tyre | 1,000 kg per tyre | 1,000 kg per tyre |
| Lengths | 2 m | 2 m | 2 m | 2 m | 2 m |
Vehicle rating applies when the channel is fully encased in concrete as per the installation guide, at a maximum of 25 km/h. Not intended for heavy vehicles over 5 tonnes. All channels come in 2 m lengths. Not sure which size suits your site? Call 09 415 4588.
Why Ultra Drain Plus
Clip-in alloy topThe alloy top clips into the base. Once the channel is haunched in concrete, the surrounding compression holds it firmly in place.
Wall-locking armUDP 130 has an innovative wall-locking arm so the walls stay 100% rigid on commercial projects.
Tamper-resistantThe alloy top and base can be locked together to stop tampering in public spaces such as hospitals and parks.
UV protectedThe alloy top covers the top edge of the base, eliminating potential UV issues.
In-built 6° fallEvery UDP base has a 6° fall built in to help reduce, if not eliminate, water pooling.
Interlocking joinsThe interlocking system joins seamlessly inside the channel, and gluing the outside gives exceptional joint strength.
Honeycomb optionThe alternative honeycomb top in 6063A aluminium alloy adds strength and makes trapped leaves easier to clear.
Built to lastAll PVC components are virgin PVC with a high level of UV inhibitor for a trouble-free, long-lasting product, and are 100% recyclable.
Fits DWV pipeAll UDP parts are made to fit standard DWV piping dimensions.
Engineered for strength. Designed for performance. Built to last.
No. The alloy grating is anodised to marine-grade specifications.
It depends on the surface area and the rainfall that needs to be drained from the site. Compare flow rates in our size guide, or call us on 09 415 4588 and we'll help you choose.
Yes, with a vehicle up to 1,000 kg per inflated tyre at a maximum speed of 25 km/h, provided the Ultra Drain is encased in concrete as per the installation guide. The channels are not intended for heavy vehicular traffic over 5 tonnes.
Yes, it is resistant to all standard household chemicals.
Trade pricing
Builders, landscapers, pool builders and plumbers: enquire direct for trade pricing on the full range.
Free samples
Not sure which profile suits your project? Tell us where to send it and we'll post you a free sample.
