Ultra Drain Plus

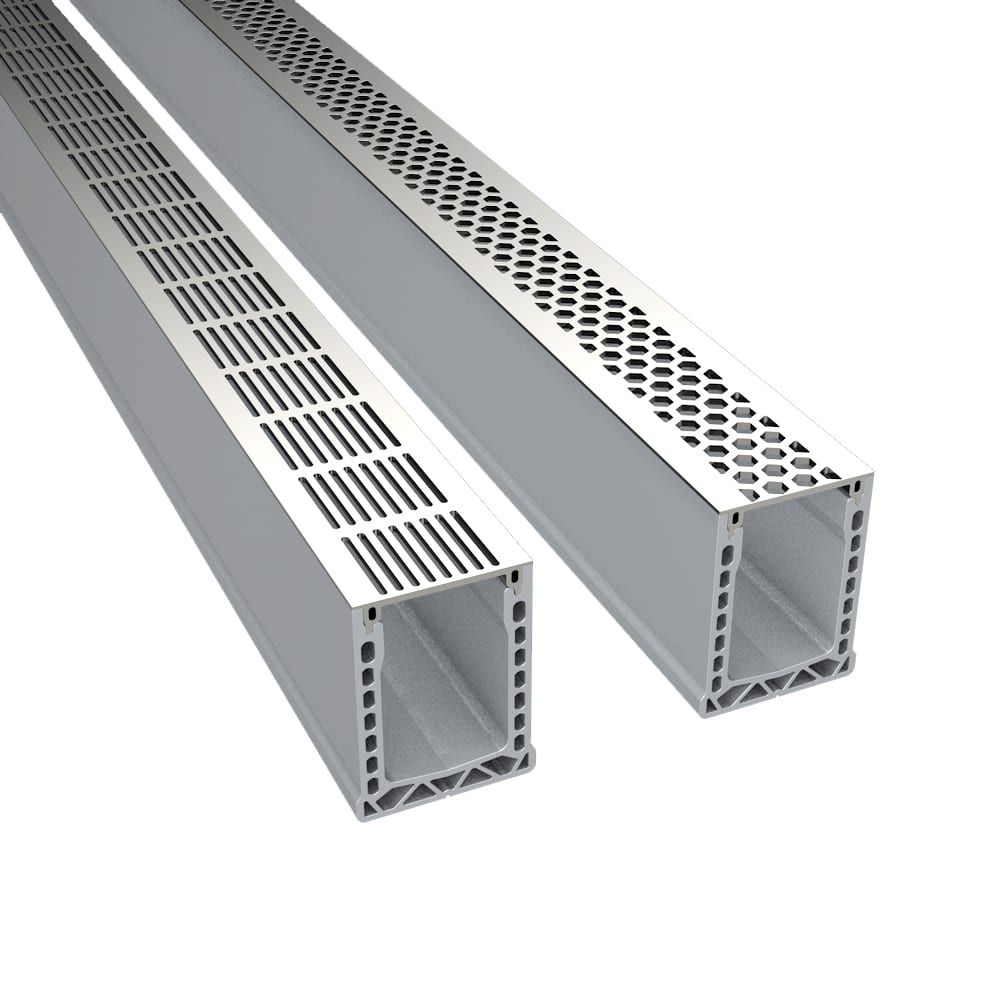

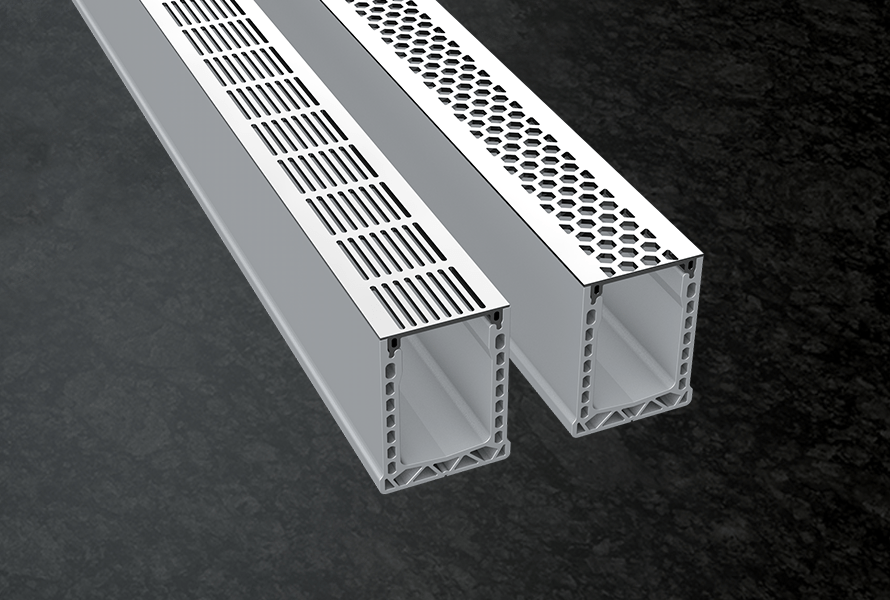

UDP 75
A narrow, deeper channel for patios, paths, courtyards and garage entries, indoors or out.
| Water flow | 400 L/min |
|---|---|
| Internal width | 75 mm |
| Overall width | 80 mm |
| Height | 105 mm |
| Channel length | 2 m |
| Discharge | Open end, in-built fall |
| Vehicle rating | 1,000 kg per tyre, max 25 km/h* |
| Grate top | Marine-grade anodised alloy, horizontal or honeycomb |
*When fully encased in concrete as per the installation guide. Not for heavy vehicles over 5 tonnes.
Accessories
- End outletEnd connection to stormwater
- Side outletSide connection to stormwater
- Bottom outletConnects to stormwater drainage
- Right angle cornerFor 90° channel connections
- End capCloses off the end of the channel
- JoinerConnects multiple channels
- Construction coverProtects the channel during the pour
Size guide
Compare the range
| Spec | UDP 45 Tile Insert | UDP 45 | UDP 75 | UDP 100 | UDP 130 |
|---|---|---|---|---|---|
| Water flow | 150 L/min | 300 L/min | 400 L/min | 570 L/min | 700 L/min |
| Internal width | 101 mm | 101 mm | 75 mm | 120 mm | 130 mm |
| Overall width | 106 mm | 106 mm | 80 mm | 120 mm | 160 mm |
| Height | 45 mm | 45 mm | 105 mm | 102.5 mm | 115 mm |
| Vehicle rating | 1,000 kg per tyre | 1,000 kg per tyre | 1,000 kg per tyre | 1,000 kg per tyre | 1,000 kg per tyre |
| Lengths | 2 m | 2 m | 2 m | 2 m | 2 m |
Vehicle rating applies when the channel is fully encased in concrete as per the installation guide, at a maximum of 25 km/h. Not intended for heavy vehicles over 5 tonnes. All channels come in 2 m lengths. Not sure which size suits your site? Call 09 415 4588.
